Cyky Switching Mode Adjustable Switch Dbd Power Supply

Basic Info

Model NO.	CY-DBD-5KV
Input Voltage	Single Phase 200-220VAC
Cooling Mode	Air-Cooling
Output Power	5kw
Warranty	One Year
Transport Package	Wooden Box
Specification	480*135*380(mm)
Trademark	CY
Origin	Zhengzhou, China
Production Capacity	100 Sets Per Month

Product Description

CYKY Switching Mode Adjustable Switch DBD Power Supply

Description:Model: DBD Series for DBD plasma cleaner equipmentAlias: Dielectric barrier discharge power supplyDBD power supplys with DB9 pin, it is controlled by analog signal or lcd screen in the front panel.Factory default analog interface.Feature:1)Small volume, light weight, high efficiency, simple structure, easy to operation, powerful, stable and reliable.2)The circuit adapt modular design, convenient debugging and maintenance.3)Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.

Technical parameter of plasma power supply:

Product Name		DBD power supply
Items No.		CY-DBD-5KV
Input Voltage		Single Phase 200-220VAC
Output	Power	5KW
	Current	0.1A
	Voltage	50KV
	Frequency	20~50khz
	Waveform	Quasi-sine-wave
Output Mode		Constant power, constant current, or constant voltage is for customized
Regulation Precision		≤1%
Efficiency		≥90%
Power Factor		cosΦ≥0.9
Power Switch		DB9 pin
Control Mode		1)Analog signal control: TTL potential2)Digital interface control can be custoimized: RS-485 /RS-232
Insulation Class		B
Protect Grade		IP20
Protection Response Time		1uS
Insulation Resistance		Input - Output: ≥20MΩ
		Input - Enclosure: ≥20MΩ
Insulating Strength		Input - Output: 2000VAC, 1minute
		Input - Enclosure: 3500VAC, 1minute
Ambient Conditions		Temperature: (-20~50)ºC
Display Mode		Chinese-English LCD display
Display Content		Working state, output voltage, output current, set value
Output Protection		Overvoltage, overcurrent and offset
Input Protection		Overvoltage, undervoltage, overcurrent, open phase
Insulation Class		B
Protect Grade		IP20
Protection Response Time		1uS
Input Shell Resistance		≥20MΩ
Output Shell Resistance		≥20MΩ
Input Withstand Voltage		2000V/1min
Output Withstand Voltage		3500V/1min
Temperature		0~35ºC
Humidity		≤80%
Cooling mode		Air-cooling
Dimensions		480*135*380(mm)

Application:Ozone generation, power supply for cnc plasma, plasma cleaning and plasma formation.etc.

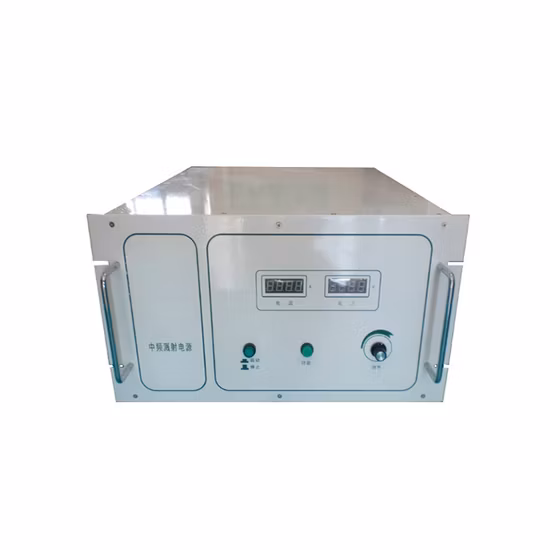

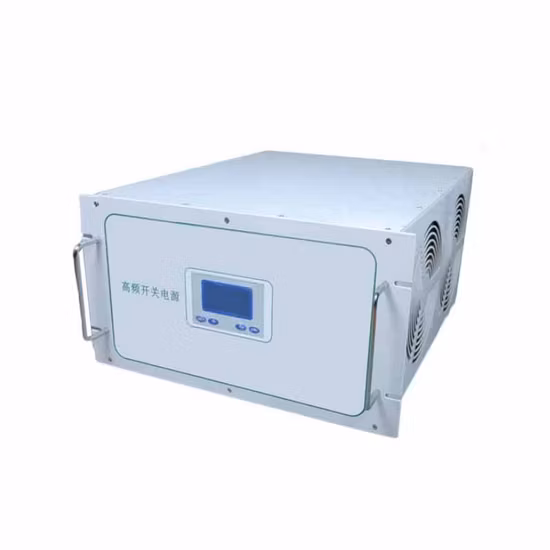

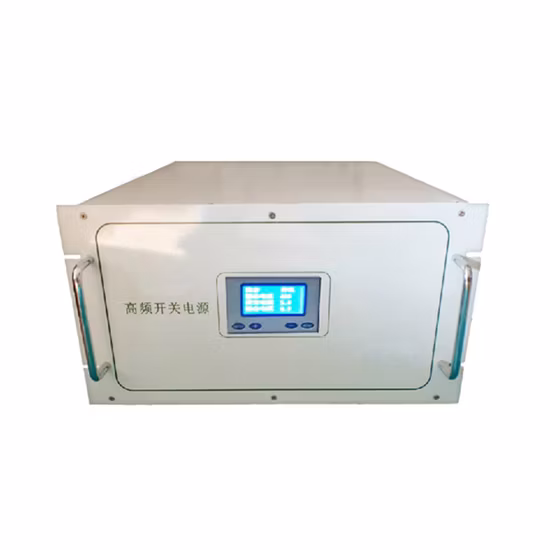

More photos of plasma power supply:

Founded in 2005, Zhengzhou CY Scientific Instrument is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
